IHDP with a mid-flight failure injection

Demonstrates how the Incremental Heuristic Dynamic Programming (IHDP) controller adapts when the aircraft dynamics change mid-flight. We train on LinearLongitudinalF16-v0 for 40 seconds, then at \(t=25\) s mutate an element of the discrete-time A-matrix to simulate a control-surface or airflow fault.

Source notebook: example/failure_demos/example_ihdp_failure.ipynb.

1. Imports

import warnings
warnings.filterwarnings('ignore')

import gymnasium as gym
import numpy as np
import pandas as pd
from tqdm import tqdm

import tensoraerospace  # registers Gymnasium envs
from tensoraerospace.agent.ihdp.model import IHDPAgent
from tensoraerospace.signals.standard import unit_step
from tensoraerospace.utils import convert_tp_to_sec_tp, generate_time_period

2. Experiment configuration

CONFIG = {
    "dt": 0.01,              # integration step [s]
    "tn": 40,                # total simulation time [s]
    "step_amplitude_deg": 5, # α step reference [deg]
    "step_time": 10,         # when the step occurs [s]
    "failure_step": 2500,    # k at which we inject the failure
    "failure_value": 0.98,   # new A[1][1] after the failure
    "tracking_state": "alpha",
}

3. Environment

tp = generate_time_period(tn=CONFIG["tn"], dt=CONFIG["dt"])
tps = convert_tp_to_sec_tp(tp, dt=CONFIG["dt"])
number_time_steps = len(tp)

reference_signals = np.reshape(
    unit_step(
        tp=np.asarray(tps, dtype=np.float32),
        degree=CONFIG["step_amplitude_deg"],
        time_step=CONFIG["step_time"],
        output_rad=True,
    ),
    (1, -1),
)

env = gym.make(
    'LinearLongitudinalF16-v0',
    number_time_steps=number_time_steps,
    initial_state=[[0], [0], [0], [0]],
    reference_signal=reference_signals,
    tracking_states=[CONFIG["tracking_state"]],
)
env.reset()

The discrete-time state matrix of the linearised F-16 is:

	theta	alpha	q	ele
theta	1.000	0.000016	0.009959	-0.000003
alpha	0.000	0.994583	0.009090	-0.000013
q	0.000	0.003281	0.991879	-0.000514
ele	0.000	0.000000	0.000000	0.817095

The failure we inject overwrites A[1][1] (the self-coupling of α) from 0.994583 to 0.98.

4. IHDP agent configuration

actor_settings = {
    "start_training": 5,
    "layers": (25, 1),
    "activations": ('tanh', 'tanh'),
    "learning_rate": 2,
    "learning_rate_exponent_limit": 10,
    "type_PE": "combined",
    "amplitude_3211": 15,
    "pulse_length_3211": 5 / CONFIG["dt"],
    "maximum_input": 25,
    "maximum_q_rate": 20,
    "WB_limits": 30,
    "NN_initial": 120,
    "cascade_actor": False,
    "learning_rate_cascaded": 1.2,
}

critic_settings = {
    "Q_weights": [8],
    "start_training": -1,
    "gamma": 0.99,
    "learning_rate": 15,
    "learning_rate_exponent_limit": 10,
    "layers": (25, 1),
    "activations": ("tanh", "linear"),
    "WB_limits": 30,
    "NN_initial": 120,
    "indices_tracking_states": env.unwrapped.indices_tracking_states,
}

incremental_settings = {
    "number_time_steps": number_time_steps,
    "dt": CONFIG["dt"],
    "input_magnitude_limits": 25,
    "input_rate_limits": 60,
}

agent = IHDPAgent(
    actor_settings, critic_settings, incremental_settings,
    env.unwrapped.tracking_states,
    env.unwrapped.state_space,
    env.unwrapped.control_space,
    number_time_steps,
    env.unwrapped.indices_tracking_states,
)

5. Simulation with failure injection

xt = np.array([[0], [0]])

for step in tqdm(range(number_time_steps - 1)):
    if step == CONFIG["failure_step"]:
        # Mutate the plant A-matrix at t = 25 s. The controller is not told.
        env.unwrapped.model.filt_A[1][1] = CONFIG["failure_value"]

    ut = agent.predict(xt, reference_signals, step)
    xt, reward, terminated, truncated, info = env.step(np.array(ut))
    if terminated or truncated:
        break

6. Results

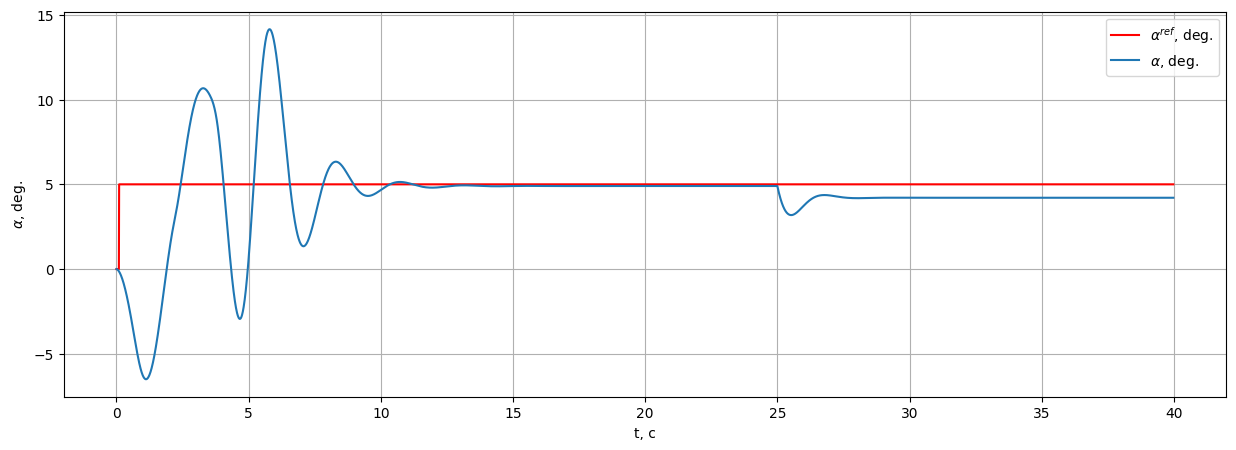

Angle-of-attack tracking. The failure at \(t = 25\) s creates a small transient; IHDP's incremental model picks up the new local linearisation within a couple of seconds and the tracking resumes.

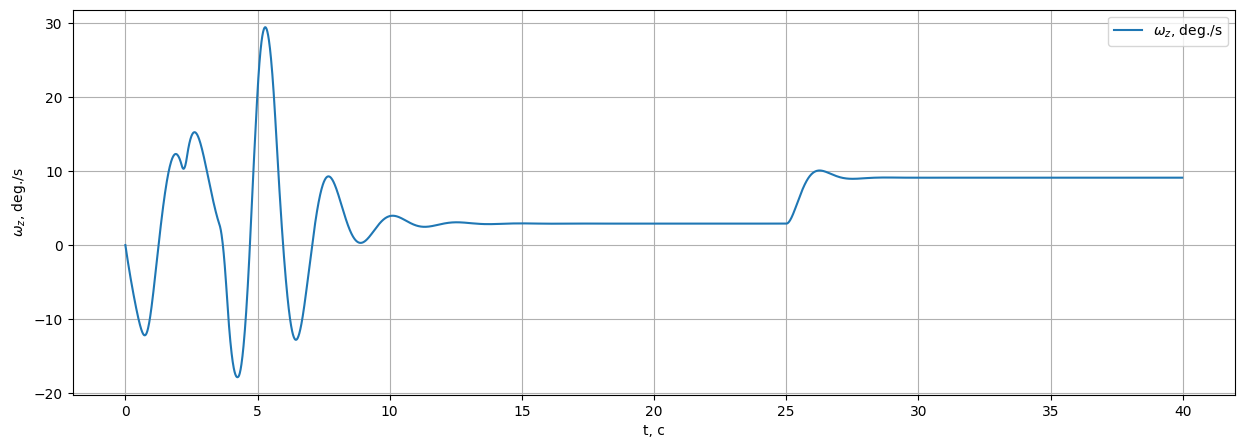

Pitch rate. Brief spike at the failure instant, quickly damped.

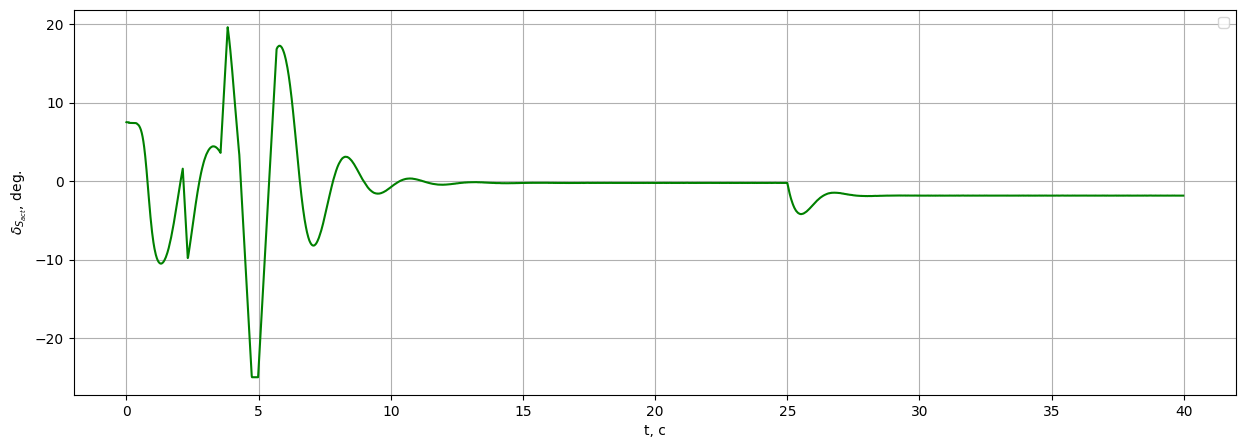

Elevator command. The controller shifts to a new steady-state deflection to compensate for the changed dynamics.

Summary

Phase	Time	Behaviour
Normal	0 – 25 s	α tracks the 5° step
Failure injection	\(t = 25\) s	A[1][1] → 0.98
Adaptation	25 – 40 s	IHDP's incremental model re-identifies, tracking recovers

Key takeaway: IHDP's online incremental identification lets the controller recover from an unannounced change in plant dynamics without any retuning or restart.

Optional: quantitative benchmark

from tensoraerospace.benchmark import ControlBenchmark

benchmark = ControlBenchmark()
metrics = benchmark.plot(
    np.rad2deg(reference_signals[0]),
    env.unwrapped.model.state_history['alpha'],
    dt=CONFIG['dt'],
    tps=tps,
    title="IHDP F-16 failure response",
)
