Unity Environment

UnityAirplaneEnvironment is a training-focused Unity setup for aircraft reinforcement learning: ready-made scenes with increasing complexity, configurable physics, and a convenient gym-based Python wrapper.

• Ready scenes: base, birds, icing, rain, wind
• Control & physics: AircraftManager, aero modules, experiment configs
• Python API: get_plane_env and unity_discrete_env (3^7 discrete actions)
• Scaling: Docker, GPU, parallel workers

Quick start

1. Build the Unity project → Build the environment in Unity
2. Run and validate the Python wrapper → Interact with Python
3. Launch A3C training in a container → Run in Docker (GPU/CPU, distributed)

Source: tensoraerospace/UnityAirplaneEnvironment

Environment components

Components used to model aircraft motion:

Component	Purpose	Usage/parameters
Rigidbody	Physics component at the center of mass; defines mass and dynamics.	Attach to the aircraft center-of-mass object
CentreOfGravity	Marker for the aircraft’s center of gravity.	Place at the aircraft CG
AeroBody	Aerodynamic computations for aircraft parts; references the Rigidbody.	On each element (wings, fuselage, etc.)
AeroGroup	Collection of all aircraft AeroBody references.	On the aircraft controller object
Thruster	Applies thrust at the proper point.	On the propeller/engine
Elevator	Control surfaces: elevators, flaps, etc.	On movable wing/tail surfaces
AircraftManager	Handles aircraft physics and control channels.	Separate scene object
FlightDynamicsFlightManager	Links the aircraft, CG, AircraftManager, and experiment config (wind, initial pose, etc.).	Separate scene object

Control channels (AircraftManager)

Channel	Description	Range
Thrust	Engine thrust	Normalized [-1, 1]; discrete wrapper
Aileron	Ailerons	[-1, 1] /
Elevator	Elevator	[-1, 1] /
ElevatorTrim	Elevator trim	[-1, 1] /
Rudder	Rudder	[-1, 1] /
FlapUp	Raise flaps	Toggle/pulse
FlapDown	Lower flaps	Toggle/pulse

Note

In the discrete wrapper unity_discrete_env, a seven-dimensional action is encoded as a single integer: 3 values per channel ⇒ 3^7 total actions.

Unity scenes

Training includes 5 scenes (1 base + 4 with additional challenges) located in UnityAirplaneEnvironment/Assets/AlbLab3/Scenes.

MLAgentsScene — base

Standard aircraft configuration.

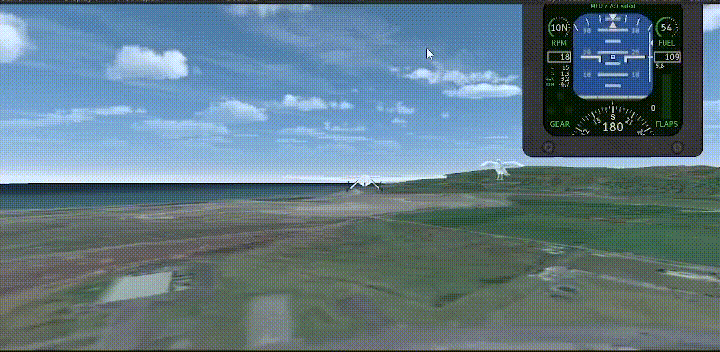

MLAgentsSceneBirds — birds

Random forces occasionally push the aircraft.

Configure via the Birds component on AircraftManager (Impact and interval). Forces apply randomly to wings or nose with magnitude (Impact, 2 × Impact).

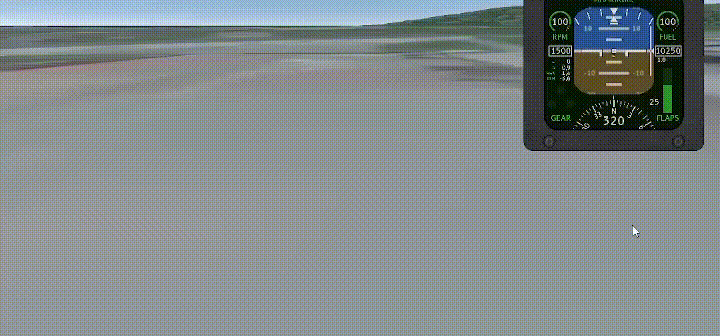

MLAgentsSceneCold — icing

Engine thrust is capped; thrust may stall; controls can freeze.

Configure MaxThrust in AircraftManager; the Cold component defines freeze intervals (UI hint “controls frozen”).

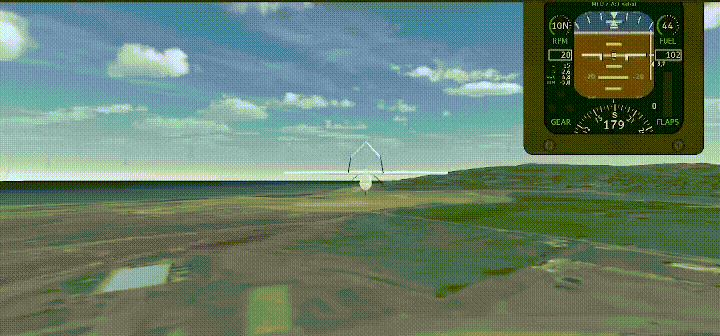

MLAgentsSceneRain — rain

Constant downward force vector.

Configure with the Rain component (Impact).

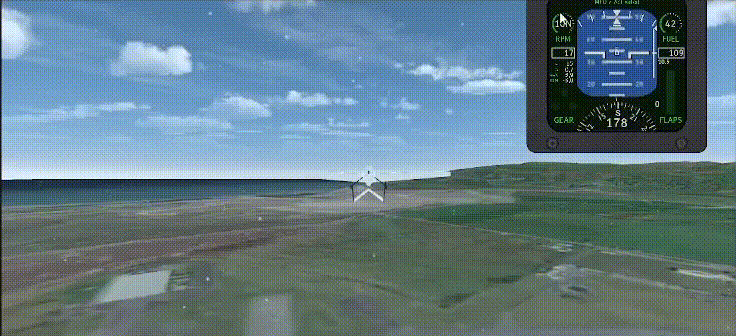

MLAgentsSceneWind — wind

Parameters from UnityAirplaneEnvironment/Assets/AlbLab3/Experiment Settings/ml_agent_wind.asset (speed, azimuth, elevator). Example: speed 10, elevator 30.

Note

Gravity is set to g = 9.81.

Interact with Python

Minimal example of acquiring the Unity gym wrapper with optional action discretization:

from tensoraerospace.envs.unity_env import get_plane_env, unity_discrete_env

# Path to the built Unity scene (Linux example)
UNITY_BUILD_PATH = "/path/to/linux_build/build.x86_64"

# For separate process/server usage, enable server=True and a unique worker id
env = get_plane_env(UNITY_BUILD_PATH, server=True, worker=0)

# For discrete action space, use the wrapper
env = unity_discrete_env(env)

obs = env.reset()
done = False
total_reward = 0.0
while not done:
    action = env.action_space.sample()
    obs, reward, done, info = env.step(action)
    total_reward += reward

env.close()

Tip

For parallel environments, assign unique worker ids and set server=True for each instance.

Build the environment in Unity

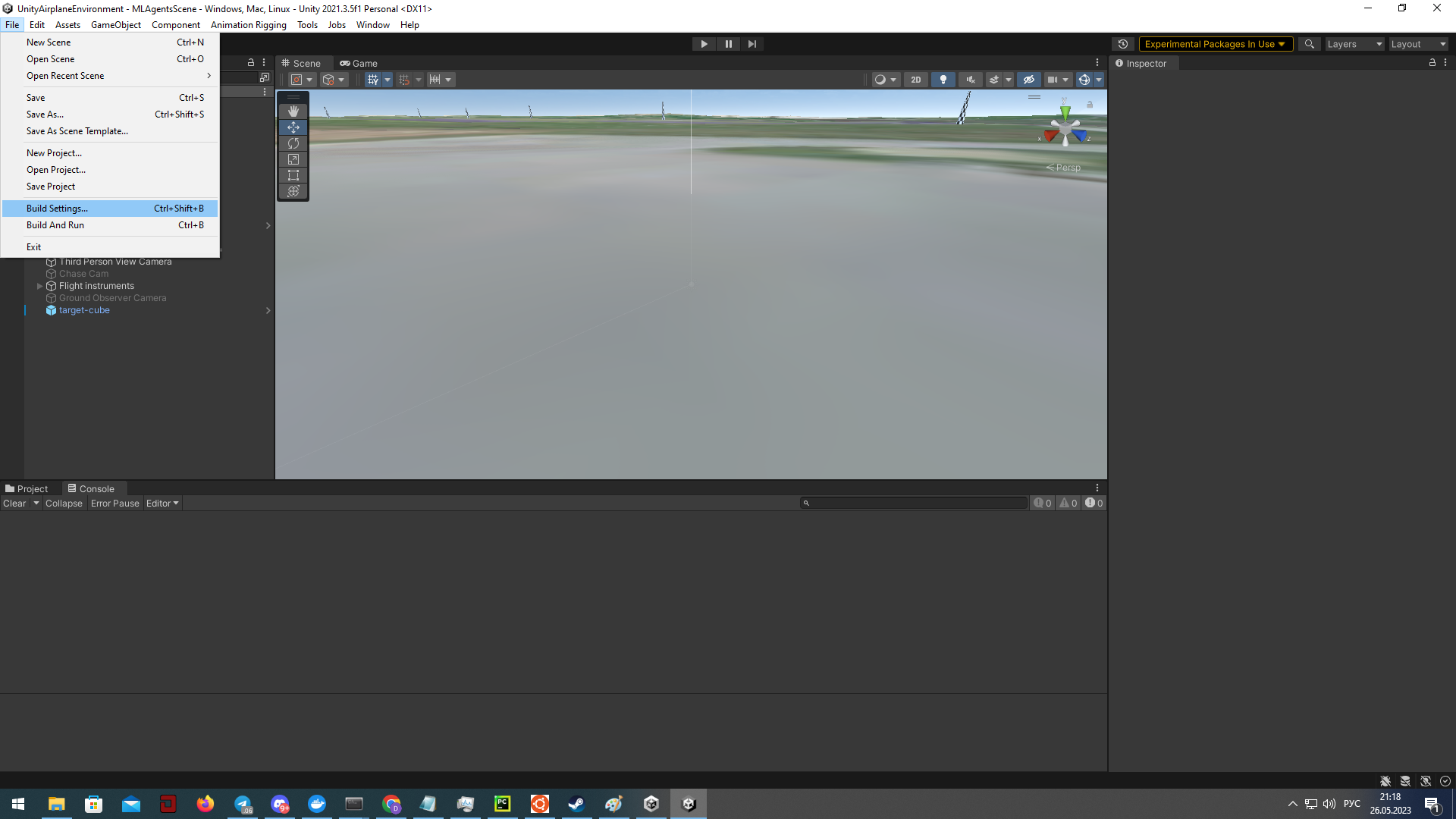

1. Open File → Build Settings in Unity.

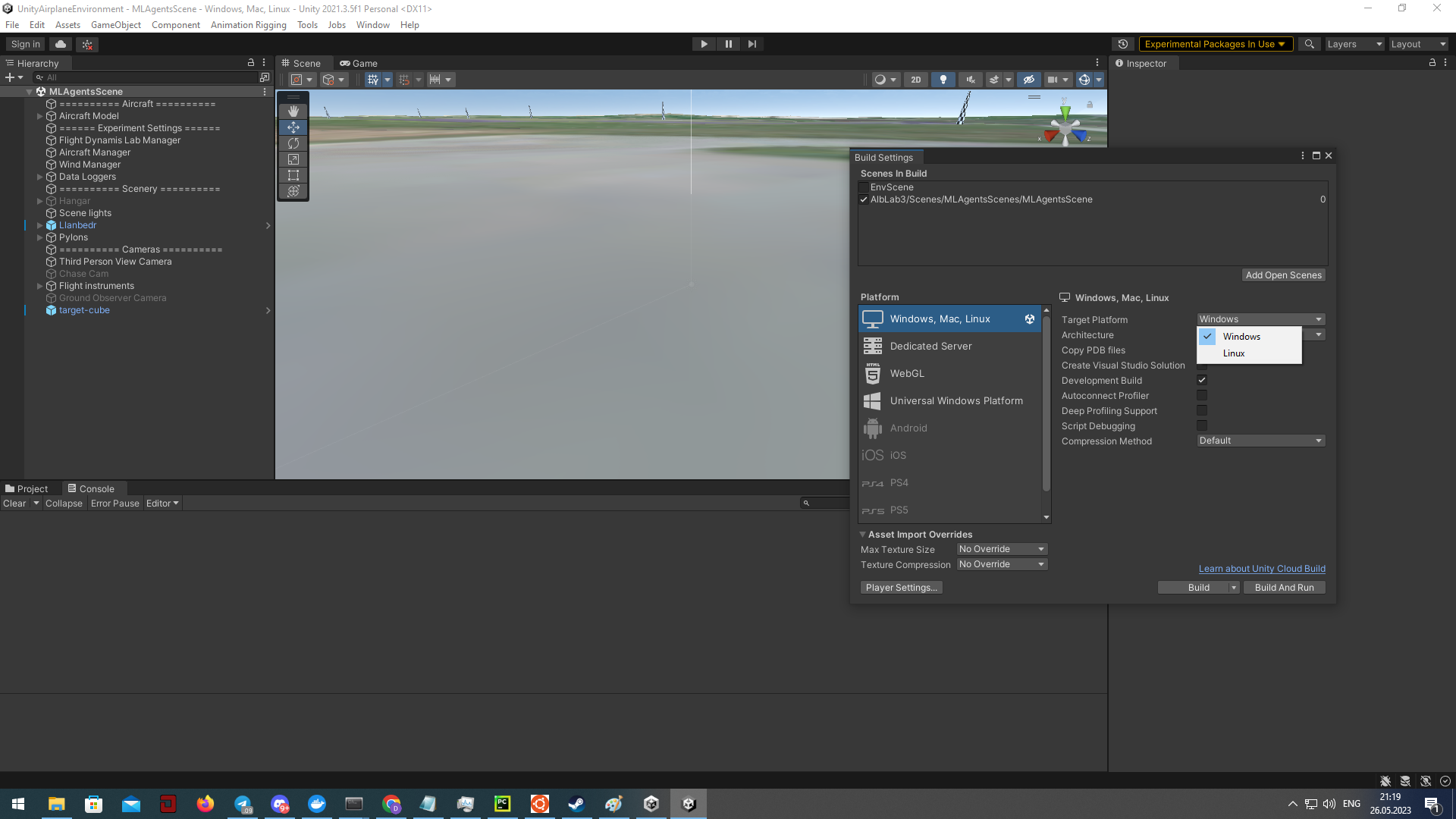

1. Choose the scene, target platform, and click Build.

1. Select the destination folder for the executable.

Run in Docker (GPU/CPU, distributed)

Benefits of distributed GPU training: higher throughput, natural parallelism (e.g., A3C), faster learning, and support for larger models. Coordination and synchronization across processes/devices are required for efficient execution.

Example Dockerfile with dependencies and TensorBoard startup:

FROM pytorch/pytorch:2.2.0-cuda12.1-cudnn8-runtime

RUN pip install mlagents==1.1.0 scipy==1.5.4 tensorboard==2.17.0
RUN mkdir /workspace/logs
COPY a3c_example.py /workspace

ENTRYPOINT tensorboard --logdir /workspace/logs --port 8889 --host 0.0.0.0 & python /workspace/a3c_example.py

Training script (A3C, multiple workers via worker_id):

from tensoraerospace.envs.unity_env import get_plane_env, unity_discrete_env
from tensoraerospace.agent.a3c import Agent, setup_global_params

def env_function(worker_id):
    # /tf/linux_build/build.x86_64 — path to the Unity build inside the container
    return get_plane_env("/tf/linux_build/build.x86_64", server=True, worker=worker_id)

actor_lr = 0.0005
critic_lr = 0.001
gamma = 0.99
hidden_size = 128
update_interval = 1

max_episodes = 100

setup_global_params(actor_lr, critic_lr, gamma, hidden_size, update_interval, max_episodes)

agent = Agent(env_function, gamma)
agent.train()

Launch the container and mount the library and Unity build:

Linux / macOSWindows

docker run --gpus all \
  -v "$PWD/tensoraerospace:/tf/tensoraerospace" \
  -v "$PWD/linux_build:/tf/linux_build" \
  -p 8889:8889 \
  unity_docker

docker run --gpus all \
  -v C:\\Users\\<USER>\\Projects\\TensorAeroSpace\\tensoraerospace:/tf/tensoraerospace \
  -v C:\\Users\\<USER>\\Projects\\TensorAeroSpace\\linux_build:/tf/linux_build \
  -p 8889:8889 \
  unity_docker

Warning

nvidia-container-toolkit is required for GPU access. On Windows use absolute paths in -v.

Sample training run
