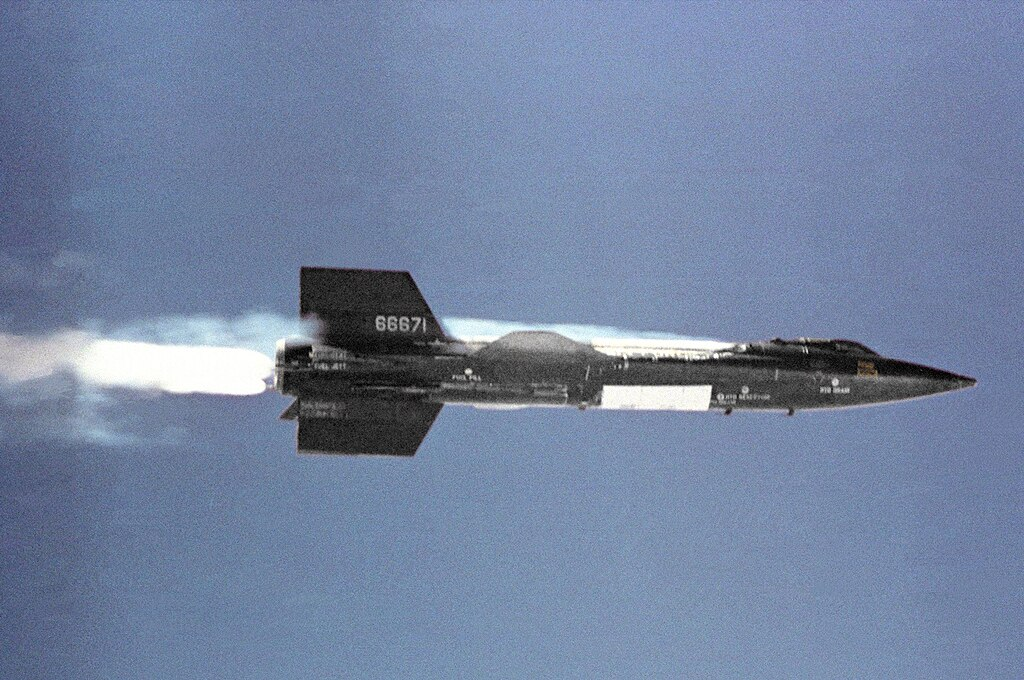

North American X‑15 — Longitudinal Dynamics¶

The X‑15 is an experimental hypersonic research rocket plane. This page mirrors the ELV layout: quick start, math model, derivatives, and API.

Quick start

Launch the environment or the model within minutes.

See example
Model API

Python class documentation for the X‑15.

Go to API
Gymnasium environment

Ready environment for RL agents.

Explore
Theory

State equations and numerical parameters.

Learn more

Control object structure¶

The model is defined in the state space:

\[\dot{x} = A x + B u, \quad y = C x + D u\]

where:

\[ x = \begin{bmatrix} u & \alpha & q & \theta \end{bmatrix}^{\top}, \quad u_{in} = \eta \]

Units

Angles and angular rates use radians. API methods can output values in degrees.

Mathematical model¶

\[ \dot{x} = A x + B u, \qquad y = C x + D u \]

Numerical matrices (example linearization):

\[ \begin{bmatrix} \dot{u} \\ \dot{\alpha} \\ \dot{q} \\ \dot{\theta} \end{bmatrix} = \begin{bmatrix} -0.0087 & -0.0190 & 0 & -32.174 \\ 0.0117 & -0.3110 & 1936 & 0 \\ 0.000471 & -0.0067 & -0.1820 & 0 \\ 0 & 0 & 1 & 0 \end{bmatrix} \begin{bmatrix} u \\ \alpha \\ q \\ \theta \end{bmatrix} + \begin{bmatrix} 0.0129 \\ -0.1844 \\ -0.0001225 \\ 0 \end{bmatrix} \eta \]

Derivatives (numerical values)¶

Matrix A (derivatives):

Coefficient	Value
x_u	-0.0087
x_α	-0.0190
x_q	0
x_θ	-32.174
z_u	0.0117
z_α	-0.3110
z_q	1936
z_θ	0
m_u	0.000471
m_α	-0.0067
m_q	-0.1820
m_θ	0

Input η (column B):

Coefficient	Value
x_η	0.0129
z_η	-0.1844
m_η	-0.0001225

Sources¶

Heffley R. K., Jewell W. F. Aircraft handling qualities data. – NASA, 1972. № AD‑A277031.
Etkin B., Reid L. D. Dynamics of flight. – New York : Wiley, 1959. – Vol. 2

Reward¶

The default reward function returns the negative absolute tracking error for the pitch angle:

\[r_t = -|\theta(t) - \theta_{\text{ref}}(t)|\]

Higher reward (closer to 0) indicates better tracking performance. A custom reward function can be passed via the reward_func parameter.

Quick start¶

Gymnasium

import gymnasium as gym
import numpy as np

from tensoraerospace.envs import LinearLongitudinalX15
from tensoraerospace.utils import generate_time_period
from tensoraerospace.signals.standard import unit_step

dt = 0.01
tp = generate_time_period(tn=20, dt=dt)
number_time_steps = len(tp)
reference_signals = unit_step(degree=5, tp=tp, time_step=10, output_rad=True).reshape(1, -1)

env = gym.make(
    'LinearLongitudinalX15-v0',
    number_time_steps=number_time_steps,
    initial_state=[[0],[0],[0],[0]],
    reference_signal=reference_signals,
)
state, info = env.reset()
for _ in range(200):
    action = np.array([[0.1]])
    state, reward, terminated, truncated, info = env.step(action)
    if terminated or truncated:
        break

Model only

import numpy as np
from tensoraerospace.aerospacemodel import LongitudinalX15

dt = 0.01
number_time_steps = 200

x0 = np.array([0.0, 0.0, 0.0, 0.0])

model = LongitudinalX15(
    x0=x0,
    number_time_steps=number_time_steps,
    selected_state_output=["u", "alpha", "q", "theta"],
    dt=dt,
)

for t in range(number_time_steps - 1):
    u = np.array([[0.05]])
    x_next = model.run_step(u)

Python API¶

Model

`LongitudinalX15(x0, number_time_steps, selected_state_output=None, t0=0, dt=0.01)` ¶

Bases: ModelBase

North American X-15 in longitudinal control channel.

.. warning:: This linearized model uses the FPS (foot-pound-second) unit system, NOT SI. The A/B matrices are taken directly from the reference Simulink source tensoraerospace/aerospacemodel/simulinkModel/x15/x15_data.m where g = 32.174 ft/s^2 and the trim velocity U0 = 1936 ft/s (~Mach 1.8 at altitude). Linear velocities u and w are perturbations in ft/s, and the gravity term A[0,3] = -32.174 is in ft/s^2.

If SI-valued states are fed in (e.g. ``u`` in m/s), the dynamics
will be silently inconsistent with the matrices. Callers that
operate in SI must convert (1 m/s = 3.28084 ft/s) at the
environment boundary.

Parameters:

Name	Type	Description	Default
`x0`	`ndarray \| list[float]`	Initial state of the control object.	required
`number_time_steps`	`int`	Number of time steps.	required
`selected_state_output`	`optional`	Selected states of the control object. Defaults to None.	`None`
`t0`	`int`	Initial time. Defaults to 0.	`0`
`dt`	`float`	Discretization frequency. Defaults to 0.01.	`0.01`

Action space

ele: elevator [rad] (input saturation at |ele| <= 25 deg, rate limit 60 deg/s, both converted to radians internally).

State space (FPS units): u: Longitudinal aircraft velocity perturbation [ft/s] w: Normal aircraft velocity perturbation [ft/s] q: Pitch angular velocity [rad/s] theta: Pitch angle [rad]

Output space (FPS units): u: Longitudinal aircraft velocity perturbation [ft/s] w: Normal aircraft velocity perturbation [ft/s] q: Pitch angular velocity [rad/s] theta: Pitch angle [rad]

Initialize LongitudinalX15 instance.

Parameters:

Name	Type	Description	Default
`x0`	`ndarray \| list[float]`	Initial state of the control object.	required
`number_time_steps`	`int`	Number of time steps.	required
`selected_state_output`	`list[str] \| None`	Selected states of the control object. Defaults to None.	`None`
`t0`	`float`	Initial time. Defaults to 0.	`0`
`dt`	`float`	Discretization frequency. Defaults to 0.01.	`0.01`

`import_linear_system()` ¶

Saved linearized matrices.

Units: matrices are in FPS (foot-pound-second) system, matching the reference Simulink file x15_data.m. In the A matrix the last column of the first row is -g = -32.174 ft/s^2 and A[1,2] = U0 = 1936 ft/s is the trim airspeed, not an SI (m/s) quantity. See the class docstring for a full unit list.

`initialise_system(x0, number_time_steps)` ¶

System initialization.

Parameters:

Name	Type	Description	Default
`x0`	`ndarray \| list[float]`	Initial state of the control object.	required
`number_time_steps`	`int`	Number of time steps in iteration.	required

`run_step(ut_0)` ¶

Execute one time step iteration.

Parameters:

Name	Type	Description	Default
`ut_0`	`ndarray`	Control vector.	required

Returns:

Type	Description
`ndarray`	np.ndarray: Control object state at step t+1.

`update_system_attributes()` ¶

Update attributes that change with each time step.

`get_state(state_name, to_deg=False, to_rad=False)` ¶

Get state array history.

Parameters:

Name	Type	Description	Default
`state_name`	`str`	State name.	required
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`

Returns:

Type	Description
`ndarray`	np.ndarray: Array of selected state history.

Example

state_hist = model.get_state('alpha', to_deg=True)

`get_control(control_name, to_deg=False, to_rad=False)` ¶

Get control signal array history.

Parameters:

Name	Type	Description	Default
`control_name`	`str`	Control signal name.	required
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`

Returns:

Type	Description
`ndarray`	np.ndarray: Array of selected control signal history.

Example

control_hist = model.get_control('stab', to_deg=True)

`get_output(state_name, to_deg=False, to_rad=False)` ¶

Get output signal array history.

Parameters:

Name	Type	Description	Default
`state_name`	`str`	Output signal name.	required
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`

Returns:

Type	Description
`ndarray`	np.ndarray: Array of selected output signal history.

Example

output_hist = model.get_output('alpha', to_deg=True)

`plot_output(output_name, time, lang='rus', to_deg=False, to_rad=False, figsize=(10, 10))` ¶

Plot output signal.

Parameters:

Name	Type	Description	Default
`output_name`	`str`	Output signal name.	required
`time`	`ndarray`	Time array.	required
`lang`	`str`	Label language ('rus' or 'eng'). Defaults to "rus".	`'rus'`
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`
`figsize`	`tuple`	Figure size. Defaults to (10, 10).	`(10, 10)`

Returns:

Type	Description
`Figure`	plt.Figure: Matplotlib figure object.

Raises:

Type	Description
`Exception`	If both to_rad and to_deg are specified, or if output_name is invalid.

Example

fig = model.plot_output('alpha', time_array, lang='rus', to_deg=True)

Gymnasium environment

`LinearLongitudinalX15(initial_state, reference_signal, number_time_steps, tracking_states=None, state_space=None, control_space=None, output_space=None, reward_func=None)` ¶

Bases: Env

Simulation of LongitudinalX15 in OpenAI Gym for training agents.

.. warning:: The underlying :class:LongitudinalX15 uses FPS units (ft, lb, s). Linear velocities in the state vector are in ft/s, not m/s.

State vector: [u, w, q, theta] (FPS units) where: u - longitudinal velocity perturbation (ft/s) w - normal velocity perturbation (ft/s) q - pitch rate (rad/s) theta - pitch angle (rad)

Parameters:

Name	Type	Description	Default
`initial_state`	`ndarray \| list[float]`	Initial state.	required
`reference_signal`	`ndarray \| Callable`	Reference signal.	required
`number_time_steps`	`int`	Number of simulation steps.	required
`tracking_states`	`list[str] \| None`	Tracked states.	`None`
`state_space`	`list[str] \| None`	State space.	`None`
`control_space`	`list[str] \| None`	Control space.	`None`
`output_space`	`list[str] \| None`	Full output space (including noise).	`None`
`reward_func`	`Callable \| None`	Reward function (WIP status).	`None`

`reward(state, ref_signal, ts)` `staticmethod` ¶

Evaluate control performance.

Parameters:

Name	Type	Description	Default
`state`	`_type_`	Current state.	required
`ref_signal`	`_type_`	Reference state.	required
`ts`	`_type_`	Time step.	required

Returns:

Name	Type	Description
`reward`	`float`	Control performance evaluation.

`step(action)` ¶

Execute a simulation step.

Parameters:

Name	Type	Description	Default
`action`	`ndarray`	Array of control signals for selected control surfaces.	required

Returns:

Name	Type	Description
`next_state`	`ndarray`	Next state of the control object.
`reward`	`ndarray`	Evaluation of control algorithm actions.
`done`	`bool`	Simulation status, whether completed or not.
`logging`	`any`	Additional information (not used).

`reset(seed=None, options=None)` ¶

Reset simulation environment to initial conditions.

Parameters:

Name	Type	Description	Default
`seed`	`int`	Seed for random number generator.	`None`
`options`	`dict`	Additional options for initialization.	`None`

`render()` ¶

Visual display of actions in the environment. Status: WIP.

Raises:

Type	Description
`NotImplementedError`	Rendering is not available.
