Testing on ARM Processors¶

Performance comparison of TensorAeroSpace on ARM and x64 architectures.

ARM Support

TensorAeroSpace is fully compatible with ARM64 architecture and can be deployed on embedded systems like NVIDIA Jetson for real-time control systems.

ARM vs x64 Architecture Comparison¶

The choice between ARM and x64 depends on use case: ARM is optimal for embedded systems with power constraints, x64 — for high-performance computing.

Characteristic	ARM (RISC)	x64 (CISC)
Instruction Set	Reduced (RISC)	Complex (CISC)
Power Consumption	Low (10–20 W)	High (45–65 W)
CPU Performance	Optimized for parallelism	High single-thread performance
Software Compatibility	Requires native builds	Wide x86/x64 ecosystem
Typical Use Case	Edge devices, drones, satellites	Workstations, servers

Test Configurations¶

ARM: NVIDIA Jetson Xavier NX 16GB¶

Embedded platform for edge AI computing.

Parameter	Value
CPU	6-core NVIDIA Carmel ARM®v8.2 64-bit
CPU Frequency	Up to 1.9 GHz
GPU	384-core NVIDIA Volta™ with 48 Tensor Cores
AI Performance	Up to 21 TOPS (INT8)
Memory	16 GB LPDDR4x (59.7 GB/s)
Storage	16 GB eMMC 5.1
TDP	10–20 W
Dimensions	69.6 × 45 mm (module)

Applications in Aerospace Systems

Jetson Xavier NX is ideal for:

Onboard UAV control systems
Ground control stations for drones
Satellite data processing
Edge inference for autopilot systems

x64: GIGABYTE A7 (AMD Ryzen™ 5000 Series)¶

High-performance laptop for development and model training.

Parameter	Value
CPU	AMD Ryzen™ 9 5900HX / Ryzen™ 7 5800H
Cores/Threads	8 cores / 16 threads
CPU Frequency	3.3–4.6 GHz (boost)
GPU	NVIDIA GeForce RTX 3060/3070
Memory	Up to 64 GB DDR4-3200
Storage	NVMe SSD (up to 2 TB)
CPU TDP	45 W
Display	17.3" FHD 144Hz

Benchmark Results¶

MPC Controller on LinearLongitudinalF16-v0¶

Test: 599 simulation steps of LinearLongitudinalF16-v0 with MPC agent (example_mpc.ipynb).

Metric	Jetson Xavier NX 16GB	PC (x64 + CUDA)
Episode time	7 min 57 sec	22 sec
Speed (it/s)	1.25	26.25
Time per step	~800 ms	~37 ms
Speed difference	1x (baseline)	21.7x faster

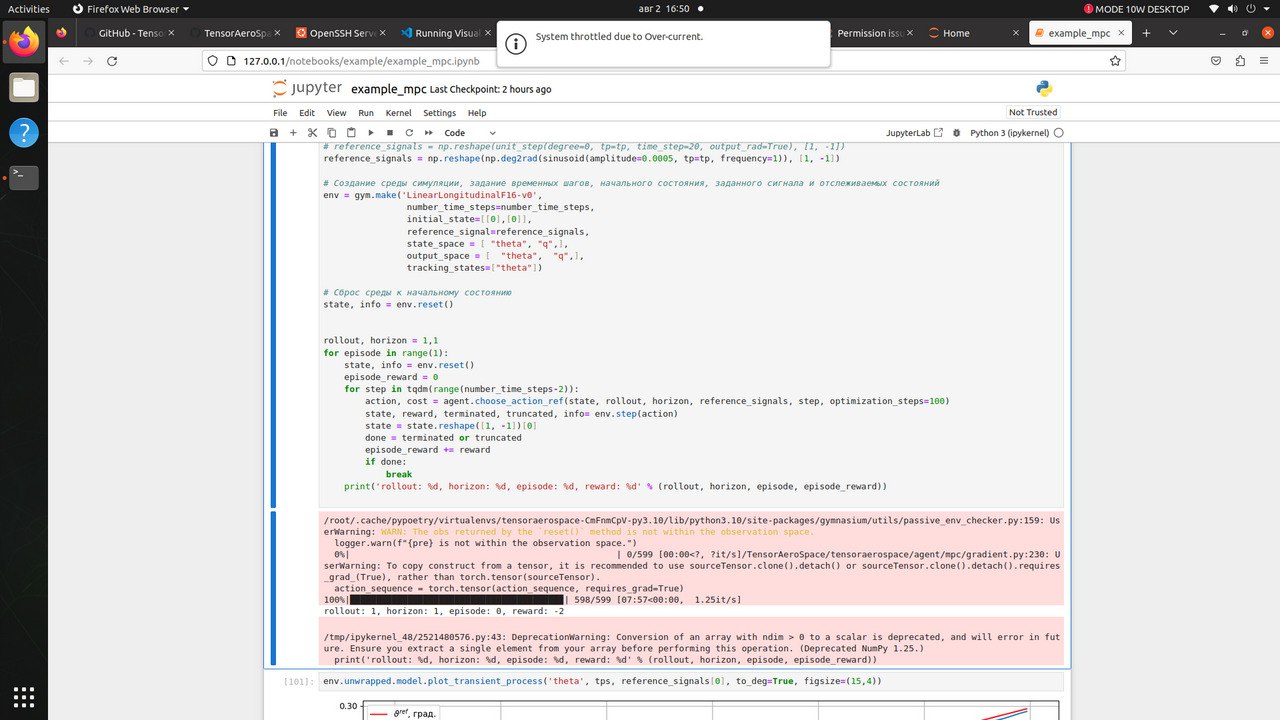

Results on Jetson Xavier NX¶

Jupyter Notebook on Jetson Xavier NX: 598/599 steps in 7:57 (1.25 it/s)

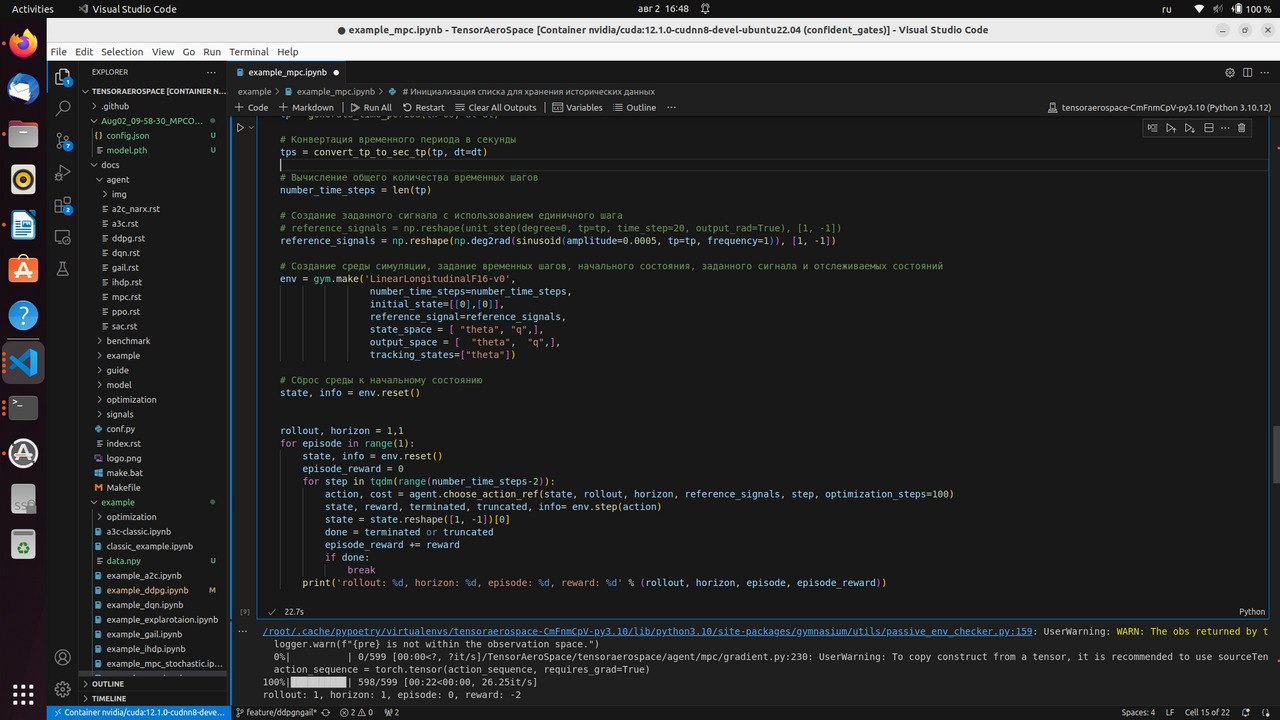

Results on PC (x64 + NVIDIA GPU)¶

VS Code + Docker (nvidia/cuda:12.1.0-cudnn8) on PC: 598/599 steps in 22 sec (26.25 it/s)

Important

MPC controller performs optimization at each step (optimization_steps=100), which is a computationally intensive operation. For ARM platforms, we recommend:

Reduce optimization_steps for real-time applications
Use pre-trained RL agents (SAC, PPO) for inference
Apply model quantization

Energy Efficiency Analysis¶

Metric	Jetson Xavier NX	PC (Ryzen + RTX)
System TDP	~15 W	~150 W
Episode time	477 sec	22 sec
Energy per episode	~2.0 Wh	~0.9 Wh
Performance per watt	0.08 step/(W·s)	1.75 step/(W·s)

Recommendation

For training and MPC: x64 systems with discrete GPUs (21x faster)
For inference with RL agents: ARM platforms (lower power consumption, sufficient speed)
For edge devices: Jetson Xavier NX with pre-trained models

Installation on ARM¶

Limited ARM Support

Testing was performed only on NVIDIA Jetson Xavier NX 16GB. We do not guarantee compatibility with other ARM processors and platforms.

If you encounter issues running on ARM:

Check PyTorch version compatibility with your platform
Create an Issue in our GitHub repository with platform description and error details
Attach logs and version information (python --version, pip list)

NVIDIA Jetson (JetPack)¶

Jetson Xavier NX / AGX XavierRaspberry Pi 4/5

# Install base dependencies
sudo apt update && sudo apt install -y python3-pip python3-venv

# Create virtual environment
python3 -m venv ~/.venv/tas
source ~/.venv/tas/bin/activate

# Install PyTorch for Jetson
pip install --upgrade pip setuptools wheel
pip install numpy

# PyTorch wheel for JetPack 5.x (ARM64)
pip install torch torchvision --index-url https://download.pytorch.org/whl/cu121

# Install TensorAeroSpace
pip install tensoraerospace

# Python and venv
sudo apt update && sudo apt install -y python3-pip python3-venv

python3 -m venv ~/.venv/tas
source ~/.venv/tas/bin/activate

pip install --upgrade pip setuptools wheel
pip install tensoraerospace

Verify GPU on Jetson¶

import torch

print(f"CUDA available: {torch.cuda.is_available()}")
print(f"Device: {torch.cuda.get_device_name(0) if torch.cuda.is_available() else 'CPU'}")

# Example with TensorAeroSpace
import gymnasium as gym

env = gym.make('LinearLongitudinalF16-v0')
print(f"Environment loaded: {env.spec.id}")

Optimization for ARM¶

Quantization¶

For faster inference on ARM, INT8 quantization is recommended:

import torch

# Load trained model
model = torch.load("policy.pth")
model.eval()

# Dynamic quantization for CPU
quantized_model = torch.quantization.quantize_dynamic(
    model,
    {torch.nn.Linear},
    dtype=torch.qint8
)

# Save optimized model
torch.save(quantized_model.state_dict(), "policy_quantized.pth")

TensorRT (for Jetson)¶

import torch
import torch_tensorrt

model = torch.load("policy.pth").cuda().eval()

# Compile with TensorRT
trt_model = torch_tensorrt.compile(
    model,
    inputs=[torch_tensorrt.Input(shape=[1, 2], dtype=torch.float32)],
    enabled_precisions={torch.float16},  # FP16 for Volta
)

# Inference
with torch.no_grad():
    output = trt_model(torch.randn(1, 2).cuda())

Compatibility

TensorRT requires JetPack SDK. Ensure your JetPack version is compatible with your Jetson model.

Deployment Recommendations¶

Memory Management

ARM devices have limited memory. Use:
- Batch size = 1 for inference
- Models with fewer parameters
- Cache clearing: torch.cuda.empty_cache()
Thermal Management

Embedded systems are sensitive to overheating:
- Ensure cooling (heatsink, fan)
- Monitor: tegrastats (Jetson)
- Use power modes: nvpmodel
Real-time Requirements

For real-time control systems:
- Use PREEMPT_RT kernel
- Disable CPU frequency scaling
- Pin process to core: taskset
Power Consumption

Battery life optimization:
- Jetson: nvpmodel -m 0 (MAX-N) / -m 1 (15W)
- Disable unused interfaces
- Use sleep between inferences

Platform Comparison Table¶

Platform	Architecture	TDP	AI TOPS	Price (USD)	Use Case
Jetson Nano	ARM Cortex-A57	5–10 W	0.5	~150	Prototyping
Jetson Xavier NX	ARM Carmel	10–20 W	21	~400	Edge AI, UAV
Jetson AGX Orin	ARM Cortex-A78AE	15–60 W	275	~1000	Autonomous systems
Raspberry Pi 5	ARM Cortex-A76	5–12 W	—	~80	Hobby, education
AMD Ryzen 7 5800H	x86-64 Zen 3	45 W	—	~350	Development, training
