Generating a DLL/SO Library

Generating C++ Code

Requirements: Embedded Coder, a properly configured compiler (GCC/Visual Studio), and access to the generated headers MODEL_NAME.h.

Embedded Coder is required to support the control system from Simulink.

Steps:

  1. Define the inputs/outputs with In1/Out1 blocks.

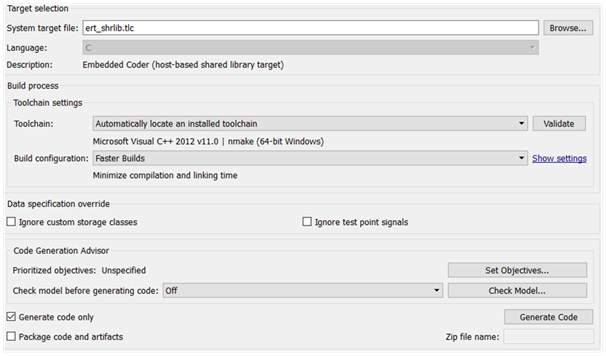

  2. In the settings: Code Generation → System target file = ert_shrlib.tlc.

Codegen settings

  1. Build the model (Ctrl+B or Build model). A directory with C/C++ sources will appear.

1) Build the Dynamic Library

— Linux/macOS:

gcc -shared -o model.so -fPIC *.c

— Windows (example):

make -f MODEL_NAME.mk

Where *.c refers to all generated source files.

2) Describe the Interaction Interface

The interface is described using ctypes.Structure and the types from tensoraerospace/aerospacemodel/utils/rtwtypes.py.

import ctypes
from tensoraerospace.aerospacemodel.utils.rtwtypes import real_T

class ExtY(ctypes.Structure):
    _fields_ = [
        ("u", real_T),
        ("w", real_T),
        ("q", real_T),
        ("theta", real_T),
        ("sim_time", real_T),
    ]

class ExtU(ctypes.Structure):
    _fields_ = [("ref_signal", real_T)]

The library typically exposes the following functions:

  • MODEL_NAME_initialize
  • MODEL_NAME_step (the step size equals dt from the model parameters)
  • MODEL_NAME_terminate

3) Example Usage from Python

import os
import ctypes
import matplotlib.pyplot as plt
from tensoraerospace.aerospacemodel.utils.rtwtypes import real_T

class ExtY(ctypes.Structure):
    _fields_ = [("u", real_T), ("w", real_T), ("q", real_T), ("theta", real_T)]

class ExtU(ctypes.Structure):
    _fields_ = [("ref_signal", real_T)]

# Provide the correct library name/extension
lib_path = os.path.abspath("model.dll")  # or model.so / model.dylib
dll = ctypes.CDLL(lib_path)

X = ExtU.in_dll(dll, 'uav1_model_U')
Y = ExtY.in_dll(dll, 'uav1_model_Y')

model_initialize = dll.model_initialize
model_step = dll.model_step
model_terminate = dll.model_terminate

model_initialize()

u_vals, w_vals, q_vals, theta_vals = [], [], [], []
for _ in range(2100):
    X.ref_signal = -0.0
    model_step()
    u_vals.append(Y.u)
    w_vals.append(Y.w)
    q_vals.append(Y.q)
    theta_vals.append(Y.theta)

model_terminate()

plt.plot(w_vals)
plt.ylabel('$u$, [m/s]')
plt.show()
