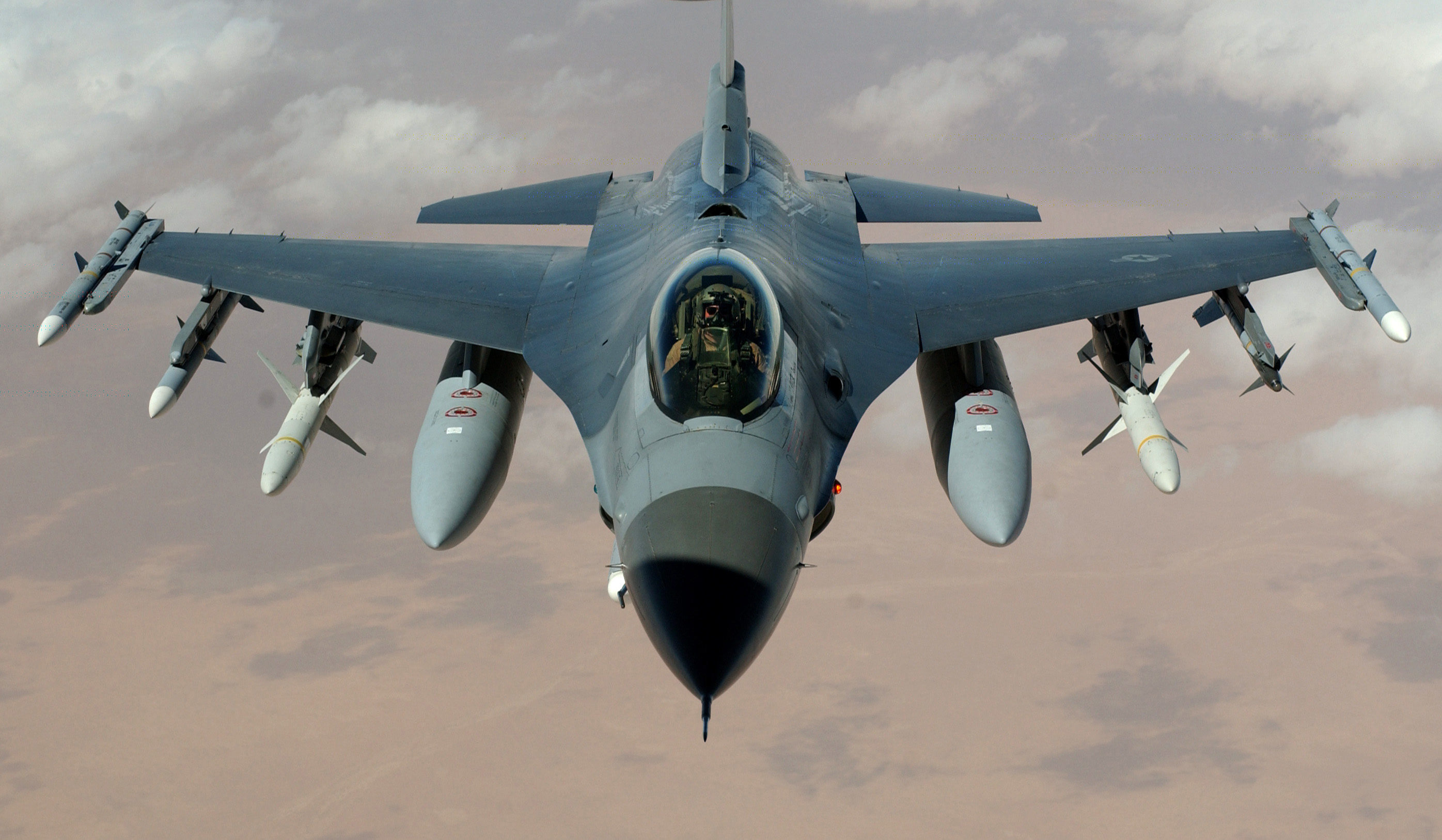

F-16 Fighting Falcon — Nonlinear 6-DoF Angular Dynamics

This module provides a nonlinear 6-DoF angular model of the F-16 Fighting Falcon, implemented in pure Python/NumPy. It covers the full coupled dynamics: longitudinal, lateral, and directional channels. The aerodynamic coefficients (six force and moment components) are interpolated from wind-tunnel tables.

• Quick start

  Run the angular model in just a few lines of code.

  See example

• Model API

  Python class documentation for the 6-DoF dynamics.

  Go to API

• Theory

  Nonlinear 6-DoF equations of motion.

  Learn more

Control object structure

The model describes the full angular motion of the F-16 with three independent control surfaces: stabilator (elevator), ailerons, and rudder.

State vector (14 elements):

\[ x = \begin{bmatrix} \alpha & \beta & \omega_x & \omega_y & \omega_z & \gamma & \psi & \theta & \delta_{\text{stab}} & \dot{\delta}_{\text{stab}} & \delta_{\text{ail}} & \dot{\delta}_{\text{ail}} & \delta_{\text{dir}} & \dot{\delta}_{\text{dir}} \end{bmatrix}^{\top} \]

Control vector (3 elements):

\[ u = \begin{bmatrix} \delta_{\text{stab,act}} & \delta_{\text{ail,act}} & \delta_{\text{dir,act}} \end{bmatrix}^{\top} \]

State variablesControl variablesDefault parameters

Variable	Symbol	Description
alpha	\(\alpha\)	Angle of attack, rad
beta	\(\beta\)	Sideslip angle, rad
wx	\(\omega_x\)	Roll rate, rad/s
wy	\(\omega_y\)	Yaw rate, rad/s
wz	\(\omega_z\)	Pitch rate, rad/s
gamma	\(\gamma\)	Bank angle, rad
psi	\(\psi\)	Heading angle, rad
theta	\(\theta\)	Pitch angle, rad
stab	\(\delta_{\text{stab}}\)	Stabilator position, rad
dstab	\(\dot{\delta}_{\text{stab}}\)	Stabilator rate, rad/s
ail	\(\delta_{\text{ail}}\)	Aileron position, rad
dail	\(\dot{\delta}_{\text{ail}}\)	Aileron rate, rad/s
dir	\(\delta_{\text{dir}}\)	Rudder position, rad
ddir	\(\dot{\delta}_{\text{dir}}\)	Rudder rate, rad/s

Variable	Symbol	Description
stab_act	\(\delta_{\text{stab,act}}\)	Stabilator command, rad
ail_act	\(\delta_{\text{ail,act}}\)	Aileron command, rad
dir_act	\(\delta_{\text{dir,act}}\)	Rudder command, rad

Parameter	Symbol	Value
Aircraft mass	\(m\)	9295.44 kg
Fuselage length	\(l\)	9.144 m
Wing area	\(S\)	27.87 m²
Wingspan	\(b_A\)	3.45 m
Roll inertia	\(J_x\)	12874.8 kg m²
Pitch inertia	\(J_y\)	85552.1 kg m²
Yaw inertia	\(J_z\)	75673.6 kg m²
Cross-product of inertia	\(J_{xy}\)	1331.4 kg m²
Altitude	\(H\)	3000 m
Airspeed	\(V\)	120 m/s

Units

Inside the model, all angles and angular rates are in radians.

Mathematical model

Aerodynamic forces and moments

Six aerodynamic coefficients are computed from tabular data at every time step:

\[ C_x, C_y, C_z, m_x, m_y, m_z = f(\alpha, \beta, \delta_{\text{stab}}, \delta_{\text{ail}}, \delta_{\text{dir}}, \delta_{\text{lef}}, \omega_x, \omega_y, \omega_z, V, \ldots) \]

The body-frame forces and moments:

\[ X = -qSC_x, \quad Y = qSC_y, \quad Z = qSC_z \]

\[ M_x = qSlm_x, \quad M_y = qSlm_y, \quad M_z = qSb_Am_z \]

with CG offset corrections:

\[ M_{Ry} = M_y - x_{\text{cg}} Z, \qquad M_{Rz} = M_z + x_{\text{cg}} Y \]

Angular momentum equations

\[ \dot{\omega}_x = \frac{J_y M_{Rx} + J_{xy}(M_{Ry} - h_{Ex}\omega_z) + J_{xy}(J_z - J_x - J_y)\omega_x\omega_z + (J_{xy}^2 + J_y(J_y - J_z))\omega_y\omega_z}{\Gamma} \]

\[ \dot{\omega}_z = \frac{M_{Rz} + h_{Ex}\omega_y + J_{xy}(\omega_x^2 - \omega_y^2) + (J_x - J_y)\omega_x\omega_y}{J_z} \]

where \(\Gamma = J_x J_y - J_{xy}^2\).

Angle-of-attack and sideslip

\[ \dot{\alpha} = \omega_z + (\omega_y \sin\alpha - \omega_x \cos\alpha)\tan\beta - \frac{Y_a + mg_{ay}}{mV\cos\beta} \]

\[ \dot{\beta} = \omega_x \sin\alpha + \omega_y \cos\alpha + \frac{Z_a + mg_{az}}{mV} \]

Euler angle kinematics

\[ \dot{\gamma} = \omega_x - \cos\gamma \tan\theta \cdot \omega_y + \sin\gamma \tan\theta \cdot \omega_z \]

\[ \dot{\theta} = \sin\gamma \cdot \omega_y + \cos\gamma \cdot \omega_z \]

\[ \dot{\psi} = \frac{\cos\gamma}{\cos\theta} \omega_y - \frac{\sin\gamma}{\cos\theta} \omega_z \]

Actuator models

Each control surface is modelled as a second-order system with position and rate limiting:

Surface	Time constant	Damping	Max deflection	Max rate
Stabilator	0.03 s	0.707	\(\pm 25°\)	\(\pm 60°/\text{s}\)
Aileron	0.02 s	0.707	\(\pm 21.5°\)	\(\pm 80°/\text{s}\)
Rudder	0.03 s	0.707	\(\pm 30°\)	\(\pm 120°/\text{s}\)

Integration methods

Two numerical integrators are available:

• Euler (default) — first-order forward Euler.
• RK4 — fourth-order Runge-Kutta, higher accuracy at the same step.

Data source

1. Stevens & Lewis, "Aircraft Control and Simulation".
2. Wind-tunnel aerodynamic tables for F-16A, stored as NumPy .npz archives.

Quick start

import numpy as np
from tensoraerospace.aerospacemodel.f16.nonlinear.angular import AngularF16

dt = 0.01
number_time_steps = 500

# State (14 elements): [alpha, beta, wx, wy, wz, gamma, psi, theta,
#                        stab, dstab, ail, dail, dir, ddir]
x0 = np.zeros(14)
x0[0] = np.radians(2.0)  # initial alpha = 2 deg

model = AngularF16(
    x0=x0,
    selected_state_output=["alpha", "beta", "wz"],
    dt=dt,
    integrator="rk4",
)

for t in range(number_time_steps - 1):
    u = np.array([np.radians(-2.0), 0.0, 0.0])  # [stab, ail, dir] (rad)
    state_next = model.run_step(u)

Python API

ModelParameters

AngularF16(x0, selected_state_output=None, t0=0, dt=0.01, integrator='euler', split_stab=False, track_altitude=False, thrust_mode='constant')

Bases: ModelBase

F-16 with full 6-DoF angular dynamics (numpy version).

Action (default, split_stab=False): [stab_act, ail_act, dir_act] (rad). Action when split_stab=True: [stab_left, stab_right, ail, dir] (rad); differential = (L - R)/2 generates a roll moment via F16AngularParameters.delta_stab_roll_gain.

current_state property

Most recent state as a flat 1-D ndarray.

F16AngularParameters(m=9295.44, l=9.144, S=27.87, bA=3.45, Jx=12874.8, Jy=85552.1, Jz=75673.6, Jxy=1331.4, Jyz=0.0, Jxz=0.0, hEx=0.0, delta_stab_cmd=0.0, delta_stab_roll_gain=0.6, T_thrust=10000.0, T_max_thrust=130000.0, damage_state=None, damage_geometry=None, Tstab=0.03, Xistab=0.707, maxabsstab=(lambda: math.radians(25))(), maxabsdstab=(lambda: math.radians(60))(), Tail=0.02, Xiail=0.707, maxabsail=(lambda: math.radians(21.5))(), maxabsdail=(lambda: math.radians(80))(), Tdir=0.03, Xidir=0.707, maxabsdir=(lambda: math.radians(30))(), maxabsddir=(lambda: math.radians(120))(), lef=0.0, sb=0.0, g=9.80665, Oy=3000.0, V=120.0) dataclass
