Typical Rocket — Longitudinal Dynamics¶

Canonical missile model in the longitudinal channel. The page mirrors the ELV layout: quick start, math model, derivative tables, and API.

Quick start

Launch the environment or the model within minutes.

See example
Model API

Python class documentation for the typical rocket.

Go to API
Gymnasium environment

Ready environment for RL agents.

Explore
Theory

State equations and numerical parameters.

Learn more

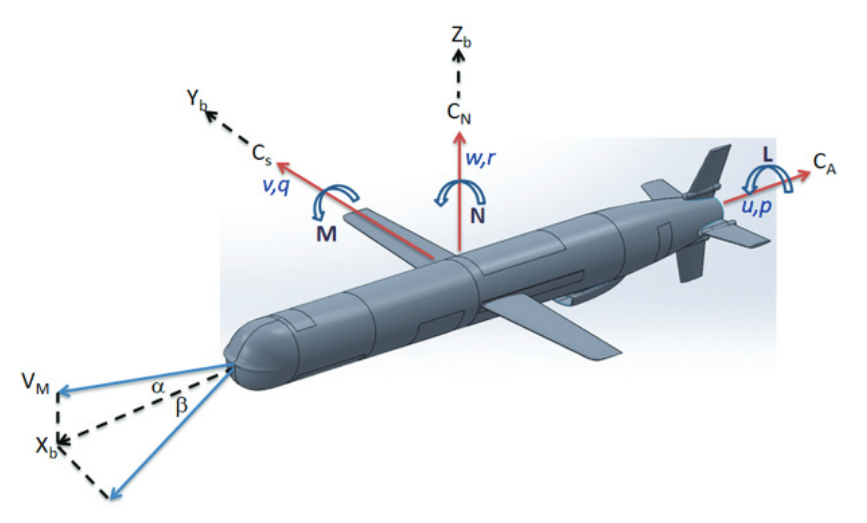

Control object structure¶

The model is defined in the state space:

\[\dot{x} = A x + B u, \quad y = C x + D u\]

where:

\[ x = \begin{bmatrix} u & w & q & \theta \end{bmatrix}^{\top}, \quad u_{in} = \eta \]

The typical matrix structure is:

\[ \begin{bmatrix} \dot{u} \\ \dot{w} \\ \dot{q} \\ \dot{\theta} \end{bmatrix} = \begin{bmatrix} x_u & x_w & x_q & x_{\theta} \\ z_u & z_w & z_q & z_{\theta} \\ m_u & m_w & m_q & m_{\theta} \\ 0 & 0 & 1 & 0 \end{bmatrix} \begin{bmatrix} u \\ w \\ q \\ \theta \end{bmatrix} + \begin{bmatrix} x_{\eta} \\ z_{\eta} \\ m_{\eta} \\ 0 \end{bmatrix} \eta \]

VariablesCoefficients

u: longitudinal speed, m/s
w: vertical speed, m/s
q: pitch rate, rad/s
θ: pitch angle, rad
η: stabilizer control deflection, rad

x_u, x_w, x_q, x_θ — partial derivatives of longitudinal force \(X\) with respect to \(u, w, q, \theta\)
z_u, z_w, z_q, z_θ — partial derivatives of normal force \(Z\)
m_u, m_w, m_q, m_θ — partial derivatives of pitch moment \(M\)
x_η, z_η, m_η — derivatives with respect to the control \(\eta\)

Units

Angles and angular rates are in radians. API methods can return values in degrees.

Mathematical model¶

\[ \dot{x} = A x + B u, \qquad y = C x + D u \]

Numerical matrices (example linearization):

\[ \begin{bmatrix} \dot{u} \\ \dot{w} \\ \dot{q} \\ \dot{\theta} \end{bmatrix} = \begin{bmatrix} -0.0089 & -0.1474 & 0 & -9.75 \\ -0.0216 & -0.3601 & 5.9470 & 0.01958 \\ 0 & -0.0015 & -0.0224 & 0.0006 \\ 0 & 0 & 1 & 0 \end{bmatrix} \begin{bmatrix} u \\ w \\ q \\ \theta \end{bmatrix} + \begin{bmatrix} 9.748 \\ 3.77 \\ -0.034 \\ 0.01 \end{bmatrix} \eta \]

Derivatives (numerical values)¶

Matrix A (derivatives):

Coefficient	Value
x_u	-0.0089
x_w	-0.1474
x_q	0
x_θ	-9.75
z_u	-0.0216
z_w	-0.3601
z_q	5.9470
z_θ	0.01958
m_u	0.0
m_w	-0.0015
m_q	-0.0224
m_θ	0.0006

Input η (column B):

Coefficient	Value
x_η	9.748
z_η	3.77
m_η	-0.034
θ_η	0.01

Actuator limits

The default control limits are:

Maximum magnitude: \(\pm 25^\circ\)
Maximum rate: \(60^\circ/\text{s\)

Internal computations use radians; the limits are converted accordingly.

Sources¶

Arikapalli V. S. N. et al. Missile Longitudinal Dynamics Control Design using Pole Placement and LQR Methods — A Critical Analysis // Defence Science Journal. 2021. 71(5). Link

Reward¶

The default reward function returns the negative absolute tracking error for the pitch angle:

\[r_t = -|\theta(t) - \theta_{\text{ref}}(t)|\]

Higher reward (closer to 0) indicates better tracking performance. A custom reward function can be passed via the reward_func parameter.

Quick start¶

GymnasiumModel only

import gymnasium as gym
import numpy as np

from tensoraerospace.envs import LinearLongitudinalMissileModel
from tensoraerospace.utils import generate_time_period
from tensoraerospace.signals.standard import unit_step

dt = 0.01
tp = generate_time_period(tn=20, dt=dt)
number_time_steps = len(tp)
reference_signals = unit_step(degree=5, tp=tp, time_step=10, output_rad=True).reshape(1, -1)

env = gym.make(
    'LinearLongitudinalMissileModel-v0',
    number_time_steps=number_time_steps,
    initial_state=[[0],[0],[0],[0]],  # u, w, q, theta
    reference_signal=reference_signals,
)
state, info = env.reset()
for _ in range(200):
    action = np.array([[0.1]])
    state, reward, terminated, truncated, info = env.step(action)
    if terminated or truncated:
        break

import numpy as np
from tensoraerospace.aerospacemodel import MissileModel

dt = 0.01
number_time_steps = 200

x0 = np.array([0.0, 0.0, 0.0, 0.0])

model = MissileModel(
    x0=x0,
    number_time_steps=number_time_steps,
    selected_state_output=["u", "w", "q", "theta"],
    dt=dt,
)

for t in range(number_time_steps - 1):
    u = np.array([[0.05]])
    x_next = model.run_step(u)

Python API¶

ModelGymnasium environment

`MissileModel(x0, number_time_steps, selected_state_output=None, t0=0, dt=0.01)` ¶

Bases: ModelBase

Missile in longitudinal control channel.

Parameters:

Name	Type	Description	Default
`x0`	`ndarray \| list[float]`	Initial state of the control object.	required
`number_time_steps`	`int`	Number of time steps.	required
`selected_state_output`	`optional`	Selected states of the control object. Defaults to None.	`None`
`t0`	`int`	Initial time. Defaults to 0.	`0`
`dt`	`float`	Discretization frequency. Defaults to 0.01.	`0.01`

Action space

ele: elevator [deg]

State space

u: Longitudinal aircraft velocity [m/s] w: Normal aircraft velocity [m/s] q: Pitch angular velocity [deg/s] theta: Pitch [deg]

Output space

u: Longitudinal aircraft velocity [m/s] w: Normal aircraft velocity [m/s] q: Pitch angular velocity [deg/s] theta: Pitch [deg]

Initialize MissileModel instance.

Parameters:

Name	Type	Description	Default
`x0`	`ndarray \| list[float]`	Initial state of the control object.	required
`number_time_steps`	`int`	Number of time steps.	required
`selected_state_output`	`list[int] \| None`	Selected states of the control object. Defaults to None.	`None`
`t0`	`float`	Initial time. Defaults to 0.	`0`
`dt`	`float`	Discretization frequency. Defaults to 0.01.	`0.01`

`import_linear_system()` ¶

Load stored linearized matrices.

`initialise_system(x0, number_time_steps)` ¶

Initialize the system.

Parameters:

Name	Type	Description	Default
`x0`	`ndarray \| list[float]`	Initial state of the control object.	required
`number_time_steps`	`int`	Number of time steps in the iteration.	required

`run_step(ut_0)` ¶

Execute one time step iteration.

Parameters:

Name	Type	Description	Default
`ut_0`	`ndarray`	Control vector.	required

Returns:

Name	Type	Description
`xt1`	`ndarray`	Control object state at step t+1.

`update_system_attributes()` ¶

Update attributes that change with each time step.

`get_state(state_name, to_deg=False, to_rad=False)` ¶

Get state array history.

Parameters:

Name	Type	Description	Default
`state_name`	`str`	State name.	required
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`

Returns:

Type	Description
`ndarray`	np.ndarray: Array of selected state history.

Example

state_hist = model.get_state('alpha', to_deg=True)

`get_control(control_name, to_deg=False, to_rad=False)` ¶

Get control signal array history.

Parameters:

Name	Type	Description	Default
`control_name`	`str`	Control signal name.	required
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`

Returns:

Type	Description
`ndarray`	np.ndarray: Array of selected control signal history.

Example

control_hist = model.get_control('stab', to_deg=True)

`get_output(state_name, to_deg=False, to_rad=False)` ¶

Get output signal array history.

Parameters:

Name	Type	Description	Default
`state_name`	`str`	Output signal name.	required
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`

Returns:

Type	Description
`ndarray`	np.ndarray: Array of selected output signal history.

Example

output_hist = model.get_output('alpha', to_deg=True)

`plot_output(output_name, time, lang='rus', to_deg=False, to_rad=False, figsize=(10, 10))` ¶

Plot output signal.

Parameters:

Name	Type	Description	Default
`output_name`	`str`	Output signal name.	required
`time`	`ndarray`	Time array.	required
`lang`	`str`	Label language ('rus' or 'eng'). Defaults to "rus".	`'rus'`
`to_deg`	`bool`	Convert to degrees. Defaults to False.	`False`
`to_rad`	`bool`	Convert to radians. Defaults to False.	`False`
`figsize`	`tuple`	Figure size. Defaults to (10, 10).	`(10, 10)`

Returns:

Name	Type	Description
`Figure`	`Figure`	Matplotlib figure object.

Raises:

Type	Description
`Exception`	If both to_rad and to_deg are specified, or if output_name is invalid.

Example

fig = model.plot_output('alpha', time_array, lang='rus', to_deg=True)

`LinearLongitudinalMissileModel(initial_state, reference_signal, number_time_steps, tracking_states=None, state_space=None, control_space=None, output_space=None, reward_func=None)` ¶

Bases: Env

Simulation of MissileModel in Gym for training AI agents.

Parameters:

Name	Type	Description	Default
`initial_state`	`Union[ndarray, list[float]]`	Initial state.	required
`reference_signal`	`Union[ndarray, Callable]`	Reference signal.	required
`number_time_steps`	`int`	Number of simulation steps.	required
`tracking_states`	`Optional[list[str]]`	Tracked states.	`None`
`state_space`	`Optional[list[str]]`	State space.	`None`
`control_space`	`Optional[list[str]]`	Control space.	`None`
`output_space`	`Optional[list[str]]`	Full output space (including noise).	`None`
`reward_func`	`Optional[Callable]`	Reward function (WIP status).	`None`

Initialize linear missile model environment.

`reward(state, ref_signal, ts)` `staticmethod` ¶

Evaluate control performance.

Parameters:

Name	Type	Description	Default
`state`	`_type_`	Current state.	required
`ref_signal`	`_type_`	Reference state.	required
`ts`	`_type_`	Time step.	required

Returns:

Name	Type	Description
`reward`	`float`	Control performance evaluation.

`step(action)` ¶

Execute a simulation step.

Parameters:

Name	Type	Description	Default
`action`	`ndarray`	Array of control signals for selected control surfaces.	required

Returns:

Name	Type	Description
`next_state`	`ndarray`	Next state of the control object.
`reward`	`ndarray`	Evaluation of control algorithm actions.
`done`	`bool`	Simulation status, whether completed or not.
`logging`	`any`	Additional information (not used).

`reset(seed=None, options=None)` ¶

Reset simulation environment to initial conditions.

Parameters:

Name	Type	Description	Default
`seed`	`int`	Seed for random number generator.	`None`
`options`	`dict`	Additional options for initialization.	`None`

`render()` ¶

Visual display of actions in the environment. Status: WIP.

Raises:

Type	Description
`NotImplementedError`	Rendering is not implemented.
