DQN (Deep Q-Network)¶

DQN — классический метод обучения с подкреплением, аппроксимирующий Q‑функцию нейросетью. В реализации используется целевая сеть для стабилизации обучения и приоритезированный опыт (PER) для более информативных обновлений.

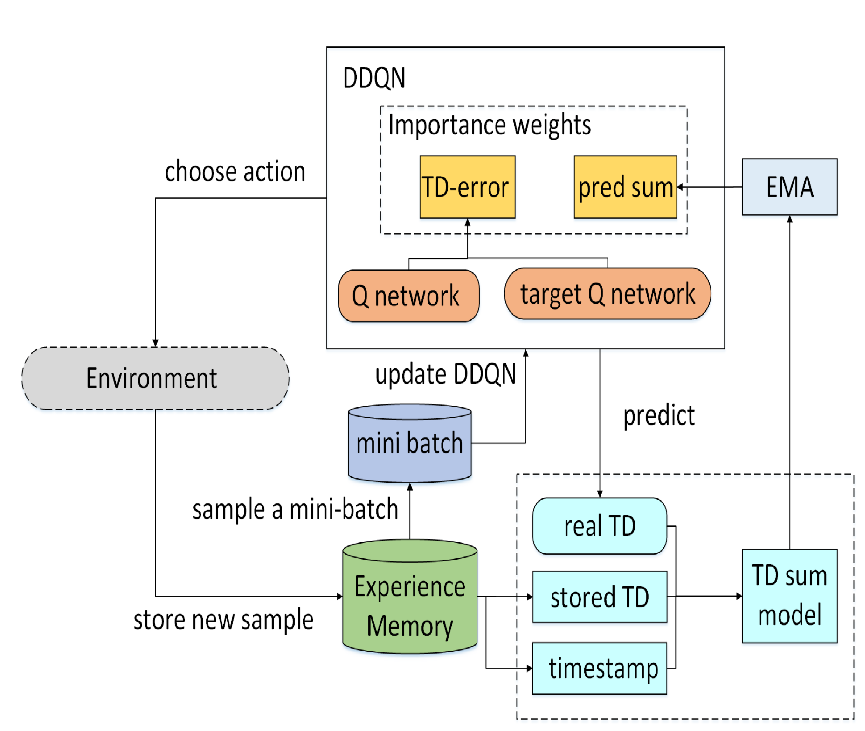

Компоненты¶

Основная Q‑сеть: оценивает \(Q_\theta(s,a)\) и выбирает действия
Целевая сеть: \(Q_{\theta^-}\) для вычисления целевых значений, реже обновляется
Буфер повторов (PER): хранит переходы и отдаёт мини‑батчи с приоритетами
Выбор действия: \(\epsilon\)-жадная стратегия

Теория¶

1) Уравнение оптимальности Беллмана¶

Оптимальная Q‑функция удовлетворяет:

\[ Q^*(s,a) = \mathbb{E}\Big[r + \gamma \max_{a'} Q^*(s', a')\,\Big|\, s,a\Big] \]

Стохастический градиентный спуск по MSE‑приближению решает:

\[ \min_\theta \;\mathbb{E}_{(s,a,r,s')}\big[\big(y - Q_\theta(s,a)\big)^2\big],\quad \text{где } y = r + \gamma\, \max_{a'} Q_{\theta^-}(s', a') \]

2) Double DQN против классического DQN¶

Классический DQN завышает оценки из‑за \(\max\) по одной и той же сети. Double DQN разносит выбор и оценку:

\[ y = r + \gamma\, Q_{\theta^-}\Big(s', \operatorname*{argmax}\limits_{a'} Q_{\theta}(s', a')\Big) \]

Это снижает переоценку и стабилизирует обучение.

3) Целевая сеть и её обновление¶

Целевая сеть \(Q_{\theta^-}\) копируется с онлайн‑сети каждые target_update_iter шагов:

\[ \theta^- \leftarrow \theta \quad \text{(периодически)} \]

Фиксированный таргет на коротком интервале уменьшает разрушение целевой функции.

4) Приоритезированный опыт (PER) и SumTree¶

Приоритет перехода i:

\[ p_i = |\delta_i| + \varepsilon_{\text{margin}} \quad \text{(далее может быть отсечён сверху: } p_i \le \text{abs\_error\_upper)} \]

Вероятность выборки:

\[ P(i) = \frac{p_i^{\alpha}}{\sum_j p_j^{\alpha}}, \quad \alpha \in [0,1] \]

Веса важности (importance sampling) для коррекции смещения:

\[ w_i = \Big( \frac{1}{N\, P(i)} \Big)^{\beta}, \quad \tilde{w}_i = \frac{w_i}{\max_j w_j}, \quad \beta \nearrow 1 \]

Обновление приоритета после шага обучения: \(p_i \leftarrow |\delta_i| + \varepsilon_{\text{margin}}\)
Структура SumTree обеспечивает \(\mathcal{O}(\log N)\) обновления/выборку по приоритетам.

5) \(\epsilon\)-жадная стратегия и её расписание¶

С вероятностью \(\epsilon\) выбирается случайное действие, иначе \(\arg\max_a Q_\theta(s,a)\).
Эксплорейшн уменьшается: \(\epsilon \leftarrow \max(\text{min\_epsilon}, \epsilon \cdot \text{epsilon\_decay})\).

6) Общий цикл обучения¶

Сбор опыта в буфер (первыe K шагов — без обучения).
Каждые replay_period шагов: выборка мини‑батча из PER, вычисление \(y\), TD‑ошибок \(\delta\), IS‑весов и обновление \(\theta\) по взвешенной MSE.
Обновление приоритетов \(p_i\) и параметра \(\beta\).
Каждые target_update_iter шагов: \(\theta^- \leftarrow \theta\).

Псевдокод:

predict_q = Q_theta(s_batch)
best_action = argmax_a predict_q
target_q = Q_theta_minus(s_next_batch)
y = r_batch + gamma * target_q[range, best_action]

# TD-ошибка и приоритеты
delta = y - predict_q[range, a_batch]
priority = clip(|delta| + margin, 0, abs_error_upper) ** alpha

# веса важности и взвешенная MSE
w = ((buffer_size * P(i)) ** -beta) / max_w
loss = mean(w * (y - Q_theta(s_batch, a_batch))^2)
update theta by SGD

# обновить приоритеты, увеличить beta, периодически обновить target

7) Стабилизационные приёмы¶

Нормализация/клиппинг градиентов
Ограничение TD‑ошибки сверху (как в коде — abs_error_upper)
Выбор Huber‑потерь вместо MSE (в нашей версии — взвешенная MSE)
Регулярное обновление target‑сети, достаточный размер буфера

8) Соответствие параметрам реализации¶

alpha — степень приоритезации (0 → равновероятно, 1 → строго по ошибке)
beta, beta_increment_per_sample — сила IS‑весов и её рост
target_update_iter — период синхронизации целевой сети
replay_period — как часто тренируемся
epsilon, epsilon_decay, min_epsilon — расписание \(\epsilon\)
margin (\varepsilon в формулах), abs_error_upper — формирование приоритетов

Быстрый старт¶

import gymnasium as gym
import numpy as np

from tensoraerospace.agent.dqn.model import Model, DQNAgent

env = gym.make('LinearLongitudinalF16-v0', number_time_steps=2000)
num_actions = env.action_space.n

model = Model(num_actions)
target_model = Model(num_actions)

agent = DQNAgent(
    model=model,
    target_model=target_model,
    env=env,
    train_nums=10000,
    epsilon=1.0,
    epsilon_dacay=0.995,
    min_epsilon=0.05,
)

agent.train()

Tip

Для непрерывного действия используйте дискретизацию или политику на базе DDPG/SAC.

Унифицированный интерфейс обучения¶

DQN поддерживает общую унифицированную сигнатуру train() из BaseRLModel:

# Старый вызов (по‑прежнему работает):
agent.train()

# Унифицированный вызов — переопределяет self.train_nums на num_episodes * max_steps:
agent.train(num_episodes=100, max_steps=200)

Если num_episodes и max_steps не указаны, агент использует бюджет шагов train_nums, заданный при создании.

Документация API¶

`Model(num_actions)` ¶

Bases: Module

DQN with two hidden layers of 32.

Only the number of actions is required to preserve the original signature. The first linear layer is lazily initialized to infer the input features at runtime from the first forward pass.

Parameters:

Name	Type	Description	Default
`num_actions`	`int`	Number of actions.	required

Initialize network layers.

Parameters:

Name	Type	Description	Default
`num_actions`	`int`	Number of discrete actions.	required

`forward(x)` ¶

Compute Q-values for a batch of observations.

`predict(inputs)` ¶

Forward function. Returns Q-values for actions.

Parameters:

Name	Type	Description	Default
`inputs`	`ndarray`	Batch of input data (numpy array [B, obs_dim]).	required

Returns:

Type	Description
`ndarray`	numpy array [B, num_actions] with Q-values.

`action_value(obs)` ¶

Select greedy action and return Q-values for the first item.

Parameters:

Name	Type	Description	Default
`obs`	`ndarray`	Batch of input data.	required

Returns:

Name	Type	Description
`best_action`	`Union[ndarray, int]`	Best action(s). If batch size is 1 -> int, else ndarray.
`q_values`	`ndarray`	Q-values of the first element in the batch for compatibility.

`SumTree(capacity)` ¶

Binary search tree class for prioritized replay buffer agent.

Parameters:

Name	Type	Description	Default
`capacity`	`int`	Buffer size.	required

Initialize sum tree for prioritized replay.

Parameters:

Name	Type	Description	Default
`capacity`	`int`	Maximum number of transitions to store.	required

`total_p` `property` ¶

Number of records in buffer.

Returns:

Type	Description
`int`	Number of records in buffer.

`add(priority, transition)` ¶

Function for adding object to buffer.

Parameters:

Name	Type	Description	Default
`priority`	`int`	Priority of added transition.	required
`transition`	`Any`	Transition vector S, A, R, S'.	required

`update(idx, priority)` ¶

Function for updating object priority with given index.

Parameters:

Name	Type	Description	Default
`idx`	`int`	Transition index.	required
`priority`	`int`	Priority of updated transition.	required

`get_leaf(s)` ¶

Function for getting object by given priority.

Parameters:

Name	Type	Description	Default
`s`	`int`	Priority by which transition is selected.	required

Returns:

Name	Type	Description
`idx`	`int`	Transition index.
`priority`	`int`	Priority of updated transition.
`transitions`	`Any`	Required transition.

`DQNAgent(model, target_model, env, learning_rate=0.0012, epsilon=0.1, epsilon_dacay=0.995, min_epsilon=0.01, gamma=0.9, batch_size=8, target_update_iter=400, train_nums=5000, buffer_size=200, replay_period=20, alpha=0.4, beta=0.4, beta_increment_per_sample=0.001, log_dir=None, verbose_histogram=False, seed=1, wandb_project=None, wandb_entity=None, wandb_run_name=None, wandb_tags=None, wandb_config=None)` ¶

DQN Agent.

Parameters:

Name	Type	Description	Default
`model`	`Module`	Deep Q-network model.	required
`target_model`	`Module`	Target deep Q-network model.	required
`env`	`Env`	Gym/Gymnasium environment.	required
`learning_rate`	`float`	Learning rate.	`0.0012`
`epsilon`	`float`	Environment exploration probability.	`0.1`
`epsilon_dacay`	`float`	Epsilon reduction coefficient per episode.	`0.995`
`min_epsilon`	`float`	Minimum epsilon value.	`0.01`
`gamma`	`float`	Discount coefficient.	`0.9`
`batch_size`	`int`	Mini-batch size.	`8`
`target_update_iter`	`int`	Target network update period (steps).	`400`
`train_nums`	`int`	Number of training steps.	`5000`
`buffer_size`	`int`	Replay buffer size.	`200`
`replay_period`	`int`	Buffer sampling period.	`20`
`alpha`	`float`	Prioritization degree.	`0.4`
`beta`	`float`	Importance sampling coefficient.	`0.4`
`beta_increment_per_sample`	`float`	Beta increment per sample.	`0.001`

Initialize DQN agent and replay buffer.

Parameters:

Name	Type	Description	Default
`model`	`Any`	Online Q-network.	required
`target_model`	`Any`	Target Q-network.	required
`env`	`Any`	Gym/Gymnasium environment.	required
`learning_rate`	`float`	Optimizer learning rate.	`0.0012`
`epsilon`	`float`	Initial epsilon for exploration.	`0.1`
`epsilon_dacay`	`float`	Multiplicative epsilon decay.	`0.995`
`min_epsilon`	`float`	Minimum epsilon value.	`0.01`
`gamma`	`float`	Discount factor.	`0.9`
`batch_size`	`int`	Training batch size.	`8`
`target_update_iter`	`int`	Steps between target updates.	`400`
`train_nums`	`int`	Total training steps to run.	`5000`
`buffer_size`	`int`	Replay buffer capacity.	`200`
`replay_period`	`int`	Sampling period from buffer.	`20`
`alpha`	`float`	PER priority exponent.	`0.4`
`beta`	`float`	PER importance sampling exponent.	`0.4`
`beta_increment_per_sample`	`float`	Increment for beta per sample.	`0.001`
`log_dir`	`str \| None`	Directory for TensorBoard logs.	`None`
`verbose_histogram`	`bool`	Whether to log histograms extensively.	`False`
`seed`	`int`	Random seed for numpy and torch. Defaults to 1.	`1`

`train(num_episodes=None, *, max_steps=None, save_best=False, save_path=None, verbose=True, **kwargs)` ¶

Train the DQN agent (unified interface).

DQN is frame-based internally. num_episodes is treated as an episode target that is multiplied by max_steps to derive a total training-step budget. When max_steps is omitted, the original self.train_nums budget set at construction is used.

Parameters:

Name	Type	Description	Default
`num_episodes`	`Optional[int]`	Target number of episodes. Converted to a step budget via `num_episodes * max_steps` when `max_steps` is provided.	`None`
`max_steps`	`Optional[int]`	Approximate maximum steps per episode.	`None`
`save_best`	`bool`	Reserved for API consistency.	`False`
`save_path`	`Optional[str]`	Reserved for API consistency.	`None`
`verbose`	`bool`	Reserved for symmetry.	`True`
`**kwargs`	`Any`	Currently unused.	`{}`

Returns:

Name	Type	Description
`dict`	`dict`	Empty dict for API compatibility.

`train_step()` ¶

Function for training step.

Returns:

Name	Type	Description
`losses`	`float`	Losses after one training step.

`sum_tree_sample(k)` ¶

Get batch for training.

Parameters:

Name	Type	Description	Default
`k`	`int`	Size of batch to get.	required

Returns:

Name	Type	Description
`idxes`	`int`	Indices of objects from batch.
`is_weights`	`float`	Priorities of objects from batch.

`evaluation(wrapped_env, render=False)` ¶

Get batch for training.

Parameters:

Name	Type	Description	Default
`wrapped_env`	`Any`	Wrapped environment (for rendering/frame capture).	required
`render`	`bool`	Whether to visualize environment or not.	`False`

Returns:

Name	Type	Description
`ep_reward`	`float`	Total reward per episode.

`close()` ¶

Close resources (e.g., SummaryWriter).

`store_transition(priority, obs, action, reward, next_state, done)` ¶

Store a transition in the replay buffer.

`rand_based_sample(k)` ¶

Placeholder for rank-based prioritized sampling (not implemented).

`get_action(best_action)` ¶

Epsilon-greedy action selection.

`update_target_model()` ¶

Target neural network update function.

`get_target_value(obs)` ¶

Compute Q-values using the target network.

`e_decay()` ¶

Function for reducing network exploration probability.

`save(path=None, save_gradients=False)` ¶

Save PyTorch models to the specified directory.

Parameters:

Name	Type	Description	Default
`path`	`str \| Path \| None`	Save path. If None, saves into current cwd under folder "dqn_agent".	`None`
`save_gradients`	`bool`	Save optimizer states to continue training.	`False`

`load(path, env, *, load_gradients=False, model_factory=None)` `classmethod` ¶

Load a DQNAgent from a directory created by :meth:save.

Parameters:

Name	Type	Description	Default
`path`	`Union[str, Path]`	Directory that contains `model.pth`, `target_model.pth` and `config.json` (as written by :meth:`save`).	required
`env`	`Any`	A Gymnasium-compatible environment. The environment is required because it is not serialised alongside the weights.	required
`load_gradients`	`bool`	If `True` and `optimizer.pth` exists, also restore the optimiser state so training can be continued.	`False`
`model_factory`	`Optional[Callable[[], Any]]`	Optional zero-argument factory for custom DQN network classes. Built-in `Model` checkpoints do not need it.	`None`

Returns:

Name	Type	Description
`DQNAgent`	`DQNAgent`	Fully initialised agent with loaded weights.

`from_pretrained(repo_name, env, access_token=None, version=None, load_gradients=False, model_factory=None)` `classmethod` ¶

Load pretrained model from local directory or Hugging Face Hub.

Parameters:

Name	Type	Description	Default
`repo_name`	`str`	Path to local folder with weights or repository name in format `namespace/repo_name` on Hugging Face Hub.	required
`env`	`Any`	A Gymnasium-compatible environment (required for reconstruction).	required
`access_token`	`Optional[str]`	Access token for private HF repository.	`None`
`version`	`Optional[str]`	Revision / branch / tag of HF repository.	`None`
`load_gradients`	`bool`	If `True`, also load optimiser states for continuing training.	`False`
`model_factory`	`Optional[Callable[[], Any]]`	Optional zero-argument factory for custom DQN network classes.	`None`

Returns:

Name	Type	Description
`DQNAgent`	`DQNAgent`	Initialised agent with loaded weights.

`publish_to_hub(repo_name, folder_path, access_token=None)` ¶

Publish saved model to Hugging Face Hub.

Parameters:

Name	Type	Description	Default
`repo_name`	`str`	Repository id on Hugging Face Hub (e.g. `"my-org/dqn-cartpole"`).	required
`folder_path`	`Union[str, Path]`	Local folder that contains saved weights (as written by :meth:`save`).	required
`access_token`	`Optional[str]`	HF access token. If `None`, the token cached by `huggingface-cli login` will be used.	`None`

DQN (Deep Q-Network)¶

Компоненты¶

Теория¶

1) Уравнение оптимальности Беллмана¶

2) Double DQN против классического DQN¶

3) Целевая сеть и её обновление¶

4) Приоритезированный опыт (PER) и SumTree¶

5) \(\epsilon\)-жадная стратегия и её расписание¶

6) Общий цикл обучения¶

7) Стабилизационные приёмы¶

8) Соответствие параметрам реализации¶

Быстрый старт¶

Унифицированный интерфейс обучения¶

Документация API¶

Model(num_actions) ¶

forward(x) ¶

predict(inputs) ¶

action_value(obs) ¶

SumTree(capacity) ¶

total_p property ¶

add(priority, transition) ¶

update(idx, priority) ¶

get_leaf(s) ¶

train(num_episodes=None, *, max_steps=None, save_best=False, save_path=None, verbose=True, **kwargs) ¶

train_step() ¶

sum_tree_sample(k) ¶

evaluation(wrapped_env, render=False) ¶

close() ¶

store_transition(priority, obs, action, reward, next_state, done) ¶

rand_based_sample(k) ¶

get_action(best_action) ¶

update_target_model() ¶

get_target_value(obs) ¶

e_decay() ¶

save(path=None, save_gradients=False) ¶

load(path, env, *, load_gradients=False, model_factory=None) classmethod ¶

from_pretrained(repo_name, env, access_token=None, version=None, load_gradients=False, model_factory=None) classmethod ¶

publish_to_hub(repo_name, folder_path, access_token=None) ¶

`Model(num_actions)` ¶

`forward(x)` ¶

`predict(inputs)` ¶

`action_value(obs)` ¶

`SumTree(capacity)` ¶

`total_p` `property` ¶

`add(priority, transition)` ¶

`update(idx, priority)` ¶

`get_leaf(s)` ¶

`train(num_episodes=None, *, max_steps=None, save_best=False, save_path=None, verbose=True, **kwargs)` ¶

`train_step()` ¶

`sum_tree_sample(k)` ¶

`evaluation(wrapped_env, render=False)` ¶

`close()` ¶

`store_transition(priority, obs, action, reward, next_state, done)` ¶

`rand_based_sample(k)` ¶

`get_action(best_action)` ¶

`update_target_model()` ¶

`get_target_value(obs)` ¶

`e_decay()` ¶

`save(path=None, save_gradients=False)` ¶

`load(path, env, *, load_gradients=False, model_factory=None)` `classmethod` ¶

`from_pretrained(repo_name, env, access_token=None, version=None, load_gradients=False, model_factory=None)` `classmethod` ¶

`publish_to_hub(repo_name, folder_path, access_token=None)` ¶
